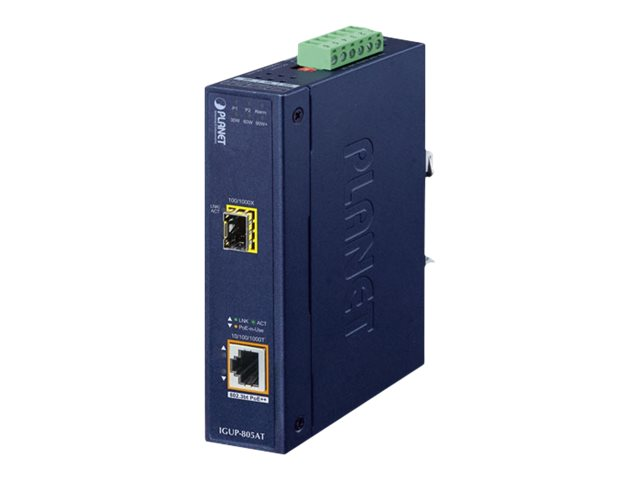

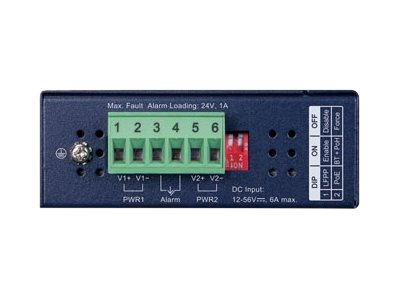

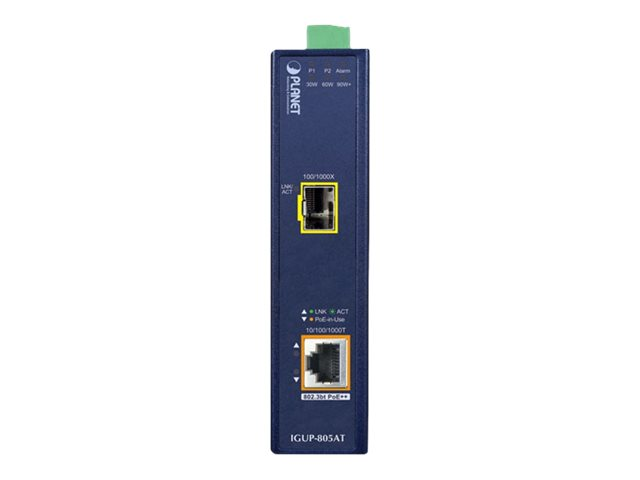

PLANET IGUP-805AT - Fibermediekonverterare - Höger vinkel PLANET IGUP-805AT - Fibermediekonverterare - Framsidan PLANET IGUP-805AT - Fibermediekonverterare - Ovansidan

PLANET IGUP-805AT - Fibermediekonverterare

1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X, 100Base-X - SFP (mini-GBIC) / RJ-45
61 i lager
Tillverkare PLANET Technology
Artikelnr IGUP-805AT
  • Logga in för pris
Lägg i kundvagn
  • Information
    • 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3bt PoE injector function
    • 1 SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver
    • Complies with IEEE 802.3bt PoE++ Type-4 PSE
    • Backward-compatible with IEEE 802.3af/at PoE+ standard
    • Provides DC 55V power over RJ45 Ethernet cable to PD with Ethernet port
    • Auto-detects IEEE 802.3bt equipment and protects devices from being damaged by incorrect installation
    • IEEE 802.3af/at/bt splitter devices compatible
    • Supports auto-negotiation and 10/100Mbps half/full-duplex and 1000Mbps full-duplex mode on RJ45 port
    • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
    • IP30 metal case
    • DIN-rail and wall-mount designs
    • Supports 6000 VDC Ethernet ESD protection
    • 40 to 75°C operating temperature
    PLANET IGUP-805AT industrial Gigabit media converter combines Ethernet media conversion with 802.3bt Power over Ethernet Plus Plus (PoE++) injector function to deliver up to 95 watts of power output and high data transmission speed to PDs (powered devices) installed in a remote area where sufficient and reliable power input is required. Its 1000BASE-X fiber optic uplink port provides long distance, high speed and stable data transmission to a remote core network. The special and convenient power system of the IGUP-805AT supports dual 12-56V DC power inputs for power redundancy and operational flexibility. Being able to operate under the temperature ranging from -40 to 75°C and with an IP30 rugged case, the IGUP-805AT can be placed in almost any difficult environment.
  • Specifikation
  • Utökad specifikation
  • Nedladdningsbara filer
